System Settings

The SYSTEM tab in EXPERT SETTINGS configures system resource allocation, deployment settings, and infrastructure parameters for machine learning experiments. This tab allows you to customize how Driverless AI utilizes system resources, manages GPU and CPU allocation, and handles remote deployment configurations.

System Settings UI

System Tab Sub-Categories

The SYSTEM tab is organized into two main sub-categories, each focusing on specific aspects of system configuration and resource management for machine learning experiments.

To access these settings, navigate to EXPERT SETTINGS > SYSTEM tab from the Experiment Setup page.

The following table describes the actions you can take from the SYSTEM page:

System Tab Sub-Categories

Sub-Category

Description

[1] Deployment

Configure remote Triton inference server settings, connection parameters, and deployment configurations

[2] System

Configure system resource allocation, CPU and GPU settings, memory management, and performance optimization

[3] Filter by Tags

Filter and organize system settings using custom tags and labels

[4] Save

Save all system configuration changes

[5] Cancel

Cancel changes and revert to previous configuration settings

Deployment

The Deployment sub-tab manages remote Triton inference server configurations, connection parameters, and deployment settings for your experiments.

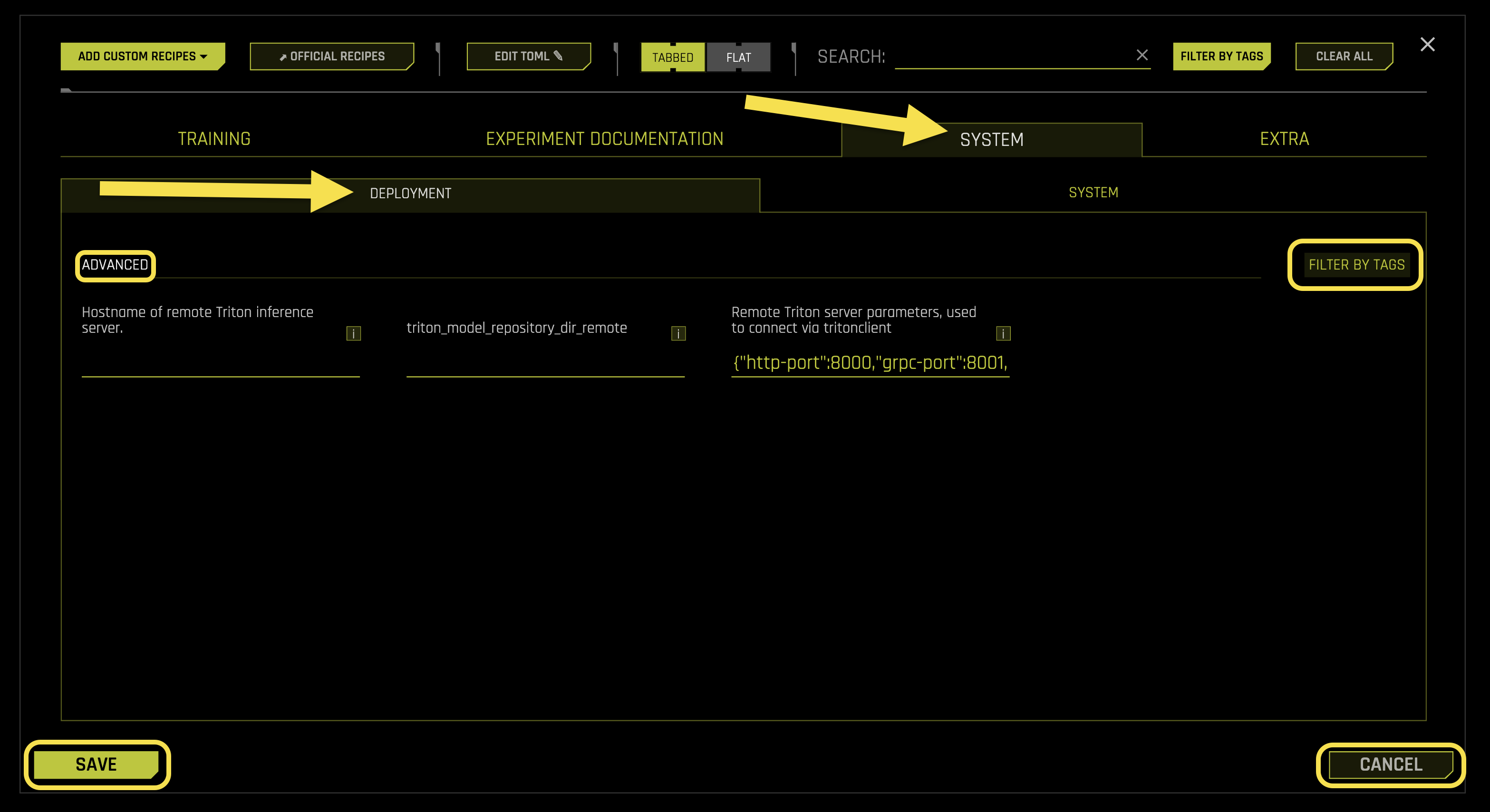

Deployment System Settings

Configuration Help

Each configuration option has a small i icon next to it. Click this icon for detailed setup instructions and explanations specific to that setting.

Advanced Settings:

  • Hostname of remote Triton inference server

    • What it does: Specifies the hostname or IP address of the remote Triton inference server

    • Purpose: Enables connection to remote Triton servers for model deployment and inference operations

    • Format: Hostname, IP address, or fully qualified domain name (FQDN)

    • Empty value: Uses local Triton server (default)

    • Requires: String value (default: “”)

  • triton_model_repository_dir_remote

    • What it does: Sets the remote directory path for Triton model repository

    • Purpose: Specifies where model artifacts are stored on the remote Triton server

    • Format: Remote directory path accessible by Triton server

    • Use case: Required for remote model deployment and management operations

    • Requires: String path (default: “”)

  • Remote Triton server parameters, used to connect via tritonclient

    • What it does: Configures connection parameters for remote Triton server communication

    • Purpose: Defines ports, protocols, and connection settings for Triton client communication

    • Default configuration:

      • http-port: 8000 (HTTP API port)

      • grpc-port: 8001 (gRPC API port)

      • metrics-port: 8002 (Metrics collection port)

      • model-control-mode: “explicit” (Model loading control)

    • Format: JSON dictionary with connection parameters

    • Requires: JSON object (default: {“http-port”:8000,”grpc-port”:8001,”metrics-port”:8002,”model-control-mode”:”explicit”})

System

The System sub-tab configures system resource allocation, CPU and GPU settings, memory management, and performance optimization for your experiments.

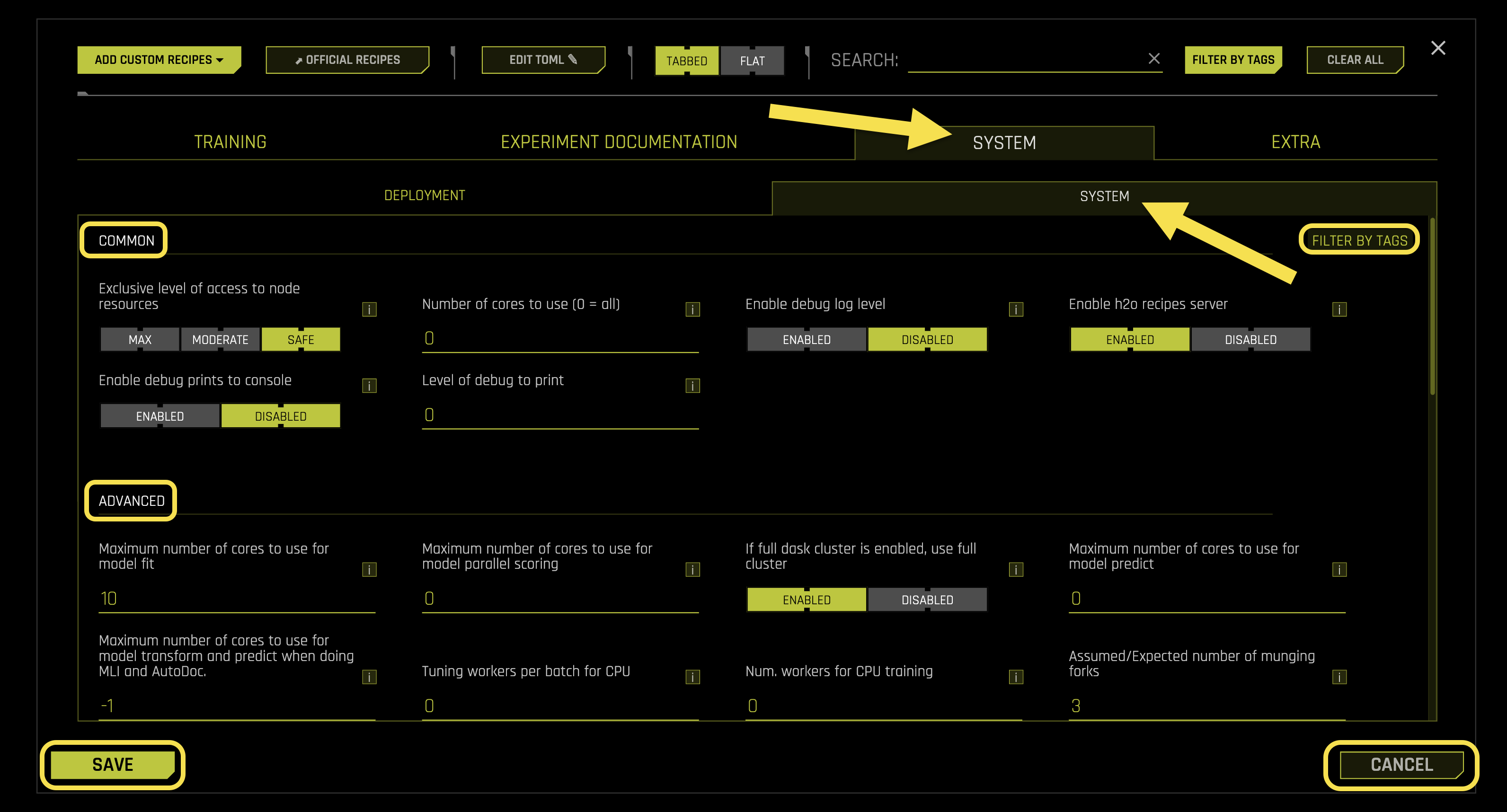

System Configuration Settings

Configuration Help

Each configuration option has a small i icon next to it. Click this icon for detailed setup instructions and explanations specific to that setting.

Common Settings:

  • Exclusive level of access to node resources

    • What it does: Controls the level of exclusive access to node resources during experiments

    • Purpose: Manages resource contention and ensures consistent performance

    • Available options:

      • safe: Assumes other experiments might be running on the same node (default)

      • moderate: Assumes no other experiments or tasks are running on the same node, but uses only physical core count

      • max: Assumes no other processes are running on the node except this experiment

    • Use case: Useful for high-priority experiments requiring dedicated system resources

    • Requires: String selection (default: safe)

  • Number of cores to use (0 = all)

    • What it does: Sets the maximum number of CPU cores to use for experiment processing

    • Purpose: Controls CPU resource allocation and prevents system overload

    • Auto mode (0): Uses all available CPU cores

    • Custom value: Limits CPU usage to specified number of cores

    • Requires: Integer value (default: 0)

  • Enable debug log level

    • What it does: Controls whether to enable detailed debug logging for system operations

    • Purpose: Provides comprehensive logging information for troubleshooting and monitoring

    • Available options:

      • Enabled: Enables detailed debug logging

      • Disabled: Uses standard logging level (default)

    • Requires: Boolean toggle (default: Disabled)

  • Enable h2o recipes server

    • What it does: Controls whether to enable the H2O recipes server for custom recipe management

    • Purpose: Allows integration with external H2O recipe repositories and custom transformations

    • Available options:

      • Enabled: Starts H2O recipes server (default)

      • Disabled: Uses local recipe management only

    • Requires: Boolean toggle (default: Enabled)

  • Enable debug prints to console

    • What it does: Controls whether to display debug information directly in the console output

    • Purpose: Provides real-time debugging information during experiment execution

    • Available options:

      • Enabled: Prints debug information to console

      • Disabled: Sends debug information to log files only (default)

    • Requires: Boolean toggle (default: Disabled)

  • Level of debug to print

    • What it does: Sets the verbosity level of debug information printed to console

    • Purpose: Controls the amount of debugging detail displayed

    • Levels:

      • 0: Minimal debug information (default)

      • 1: Standard debug information

      • 2: Detailed debug information

      • 3: Comprehensive debug information

    • Requires: Integer value (default: 0)

Advanced Settings:

  • Maximum number of cores to use for model fit

    • What it does: Sets the maximum number of CPU cores dedicated to model training

    • Purpose: Optimizes model training performance and resource utilization

    • Performance: More cores generally improve training speed, especially for large datasets

    • Requires: Integer value (default: 10)

  • Maximum number of cores to use for model parallel scoring

    • What it does: Sets the maximum number of CPU cores for parallel prediction scoring

    • Purpose: Optimizes prediction throughput for batch inference operations

    • Auto mode (0): Uses automatic core allocation

    • Custom value: Limits parallel scoring to specified number of cores

    • Requires: Integer value (default: 0)

  • If full dask cluster is enabled, use full cluster

    • What it does: Controls whether to utilize the entire Dask cluster when available

    • Purpose: Maximizes distributed computing resources for large-scale data operations

    • Available options:

      • Enabled: Uses full Dask cluster resources

      • Disabled: Uses partial cluster allocation (default)

    • Requires: Boolean toggle (default: Disabled)

  • Maximum number of cores to use for model predict

    • What it does: Sets the maximum number of CPU cores for prediction operations

    • Purpose: Controls resource allocation during inference and prediction phases

    • Auto mode (0): Uses automatic core allocation

    • Custom value: Limits prediction operations to specified number of cores

    • Requires: Integer value (default: 0)

  • Maximum number of cores to use for model transform and predict when doing MLI and AutoDoc

    • What it does: Sets CPU core allocation for model interpretability and documentation operations

    • Purpose: Optimizes performance during MLI (Model Lineage and Interpretability) and AutoDoc generation

    • Note: MLI provides model explainability and AutoDoc generates experiment documentation

    • Auto mode (-1): Uses automatic core allocation

    • Custom value: Limits MLI and AutoDoc operations to specified number of cores

    • Requires: Integer value (default: -1)

  • Tuning workers per batch for CPU

    • What it does: Sets the number of worker processes per batch during CPU-based hyperparameter tuning

    • Purpose: Optimizes hyperparameter optimization performance on CPU resources

    • Auto mode (0): Uses automatic worker allocation

    • Custom value: Specifies number of workers per tuning batch

    • Requires: Integer value (default: 0)

  • Num. workers for CPU training

    • What it does: Sets the number of worker processes for CPU-based model training

    • Purpose: Controls parallel training performance and resource utilization

    • Auto mode (0): Uses automatic worker allocation

    • Custom value: Specifies number of training workers

    • Requires: Integer value (default: 0)

  • Assumed/Expected number of munging forks

    • What it does: Sets the expected number of data preprocessing (munging) processes

    • Purpose: Optimizes data preprocessing performance and resource planning

    • Performance: More forks can improve data preprocessing speed on multi-core systems

    • Requires: Integer value (default: 3)

  • Max. threads for datatable munging

    • What it does: Sets the maximum number of threads for datatable data preprocessing operations

    • Purpose: Controls threading for efficient data manipulation and transformation

    • Performance: More threads can improve munging performance on multi-core systems

    • Note: datatable is a high-performance data manipulation library

    • Requires: Integer value (default: 4)

  • Max. threads for datatable reading/writing

    • What it does: Sets the maximum number of threads for datatable file I/O operations

    • Purpose: Optimizes data loading and saving performance

    • Performance: More threads can improve I/O throughput for large datasets

    • Note: datatable is a high-performance data manipulation library

    • Requires: Integer value (default: 4)

  • Max. workers for final model building

    • What it does: Sets the maximum number of worker processes for final model construction

    • Purpose: Controls resource allocation during the final model building phase

    • Auto mode (0): Uses automatic worker allocation

    • Custom value: Limits final model building to specified number of workers

    • Requires: Integer value (default: 0)

  • Max. workers for final per-model munging

    • What it does: Sets the maximum number of workers for per-model data preprocessing

    • Purpose: Optimizes data preprocessing performance for individual models

    • Auto mode (0): Uses automatic worker allocation

    • Custom value: Limits per-model munging to specified number of workers

    • Requires: Integer value (default: 0)

  • Max. Num. of threads to use for datatable and OpenBLAS for munging and model training (0 = all, -1 = auto)

    • What it does: Sets the maximum number of threads for datatable and OpenBLAS operations during munging and training

    • Purpose: Controls threading for optimized mathematical operations and data processing

    • Note: OpenBLAS is an optimized Basic Linear Algebra Subprograms library

    • Auto mode (-1): Uses automatic thread allocation

    • All mode (0): Uses all available threads

    • Custom value: Limits threading to specified number of threads

    • Requires: Integer value (default: -1)

  • Max. Num. of threads to use for datatable read and write of files (0 = all, -1 = auto)

    • What it does: Sets the maximum number of threads for datatable file I/O operations

    • Purpose: Optimizes file reading and writing performance

    • Note: datatable is a high-performance data manipulation library

    • Auto mode (-1): Uses automatic thread allocation

    • All mode (0): Uses all available threads

    • Custom value: Limits I/O threading to specified number of threads

    • Requires: Integer value (default: -1)

  • Max. Num. of threads to use for datatable stats and OpenBLAS (0 = all, -1 = auto)

    • What it does: Sets the maximum number of threads for datatable statistical operations and OpenBLAS computations

    • Purpose: Controls threading for statistical calculations and mathematical operations

    • Note: OpenBLAS is an optimized Basic Linear Algebra Subprograms library

    • Auto mode (-1): Uses automatic thread allocation

    • All mode (0): Uses all available threads

    • Custom value: Limits statistical threading to specified number of threads

    • Requires: Integer value (default: -1)

  • #GPUs/Experiment (-1 = autodetect or all)

    • What it does: Sets the number of GPUs to allocate per experiment

    • Purpose: Controls GPU resource allocation across experiments

    • Auto mode (-1): Automatically detects and uses all available GPUs

    • Custom value: Limits experiment to specified number of GPUs

    • Requires: Integer value (default: -1)

  • Num Cores/GPU

    • What it does: Sets the number of CPU cores to allocate per GPU

    • Purpose: Optimizes CPU-GPU resource pairing for balanced performance

    • Auto mode (-2): Uses automatic CPU-GPU core allocation

    • Custom value: Specifies CPU cores per GPU

    • Requires: Integer value (default: -2)

  • #GPUs/Model (-1 = all)

    • What it does: Sets the number of GPUs to allocate per individual model

    • Purpose: Controls GPU resource allocation for model training and inference

    • Auto mode (-1): Uses all available GPUs for each model

    • Custom value: Limits each model to specified number of GPUs

    • Requires: Integer value (default: 1)

  • Num. of GPUs for isolated prediction/transform

    • What it does: Sets the number of GPUs dedicated to isolated prediction and transformation operations

    • Purpose: Reserves GPU resources for specific prediction and transformation tasks

    • Isolation: Prevents resource contention with other operations

    • Requires: Integer value (default: 0)

  • GPU starting ID (0..visible #GPUs - 1)

    • What it does: Sets the starting GPU device ID for GPU allocation

    • Purpose: Allows selection of specific GPU devices for experiments

    • Auto mode (-1): Uses automatic GPU device selection

    • Custom value: Starts GPU allocation from specified device ID

    • Requires: Integer value (default: -1)

  • Whether to reduce features when model fails

    • What it does: Controls whether to automatically reduce features when model training fails

    • Purpose: Enables automatic recovery from memory or resource-related model failures

    • Note: Primarily useful for GPU out-of-memory (OOM) scenarios

    • Available options:

      • auto: Automatically enables/disables based on reproducibility settings (default)

      • on: Always reduces features when models fail

      • off: Stops experiment when models fail

    • Requires: String selection (default: Auto)

  • Number of repeats for models used for feature selection during failure recovery

    • What it does: Sets the number of retry attempts for models during feature selection failure recovery

    • Purpose: Controls retry behavior when feature selection models fail

    • Recovery: Helps ensure successful feature selection during failure recovery

    • Note: More repeats can lead to higher accuracy but increase processing time

    • Requires: Integer value (default: 1)

  • Fraction of features treated as anchor for feature selection during failure recovery

    • What it does: Sets the fraction of features to use as anchor features during failure recovery

    • Purpose: Provides stable reference features for feature selection recovery

    • Stability: Anchor features help maintain selection consistency during recovery

    • Note: Each repeat gets new anchor features for better coverage

    • Requires: Float value (default: 0.1)

  • Errors from XGBoost that trigger reduction of features

    • What it does: Specifies XGBoost error messages that trigger automatic feature reduction

    • Purpose: Enables automatic recovery from XGBoost-specific memory and configuration errors

    • Note: Primarily useful for GPU out-of-memory scenarios

    • Default errors: Memory allocation, out of memory, device allocator, configuration, and memory request errors

    • Format: List of error message patterns

    • Requires: List of strings (default: [“Memory allocation error on worker”,”out of memory”,”XGBDefaultDeviceAllocatorImpl”,”invalid configuration argument”,”Requested memory”])

  • Errors from LightGBM that trigger reduction of features

    • What it does: Specifies LightGBM error messages that trigger automatic feature reduction

    • Purpose: Enables automatic recovery from LightGBM-specific memory errors

    • Note: Primarily useful for GPU out-of-memory scenarios

    • Default errors: Out of host memory errors

    • Format: List of error message patterns

    • Requires: List of strings (default: [“Out of Host Memory”])

  • Whether to use GPUs for LightGBM

    • What it does: Controls whether to enable GPU acceleration for LightGBM models

    • Purpose: Enables GPU-accelerated training for LightGBM when available

    • Note: LightGBM does not significantly benefit from GPUs compared to other tools like XGBoost

    • Available options:

      • auto: Automatically determines GPU usage (default)

      • on: Uses GPU acceleration for LightGBM

      • off: Uses CPU-only LightGBM training

    • Requires: String selection (default: Auto)

  • Enable detailed traces

    • What it does: Controls whether to enable detailed execution traces for debugging

    • Purpose: Provides comprehensive execution flow information for troubleshooting

    • Note: Detailed traces are available in the GUI Trace section

    • Available options:

      • Enabled: Enables detailed execution traces

      • Disabled: Uses standard execution logging (default)

    • Requires: Boolean toggle (default: Disabled)

  • Enable logging of system information for each experiment

    • What it does: Controls whether to log detailed system information for each experiment

    • Purpose: Provides system resource usage and performance metrics for analysis

    • Note: Same information is already logged in system logs

    • Available options:

      • Enabled: Logs comprehensive system information (default)

      • Disabled: Uses minimal system logging

    • Requires: Boolean toggle (default: Enabled)

  • Whether to skip failures of transformers

    • What it does: Controls whether to continue experiments when transformer components fail

    • Purpose: Enables fault tolerance for transformer failures

    • Note: Failed features are pruned from the individual, but experiment continues if other features remain

    • Available options:

      • Enabled: Skips failed transformers and continues experiment (default)

      • Disabled: Stops experiment on transformer failure

    • Requires: Boolean toggle (default: Enabled)

  • Whether to skip failures of models

    • What it does: Controls whether to continue experiments when model training fails

    • Purpose: Enables fault tolerance for model failures

    • Note: Failures are logged based on the detailed_skip_failure_messages_level setting

    • Available options:

      • Enabled: Skips failed models and continues experiment (default)

      • Disabled: Stops experiment on model failure

    • Requires: Boolean toggle (default: Enabled)

  • Whether to skip failures of scorers

    • What it does: Controls whether to continue experiments when scorer components fail

    • Purpose: Enables fault tolerance for scorer failures

    • Note: Default is True to avoid failing final model building due to a single scorer failure

    • Available options:

      • Enabled: Skips failed scorers and continues experiment (default)

      • Disabled: Stops experiment on scorer failure

    • Requires: Boolean toggle (default: Enabled)

  • Whether to skip runtime data recipe failures

    • What it does: Controls whether to continue experiments when runtime data recipes fail

    • Purpose: Enables fault tolerance for data recipe failures

    • Note: Default is False because runtime data recipes are one-time operations expected to work

    • Available options:

      • Enabled: Skips failed data recipes and continues experiment

      • Disabled: Stops experiment on data recipe failure (default)

    • Requires: Boolean toggle (default: Disabled)

  • Level to log (0=simple message 1=code line plus message 2=detailed stack traces) for skipped failures

    • What it does: Sets the logging detail level for skipped failure events

    • Purpose: Controls the amount of debugging information logged for fault tolerance events

    • Note: Full failures always go to disk as stack files

    • Log levels:

      • 0: Simple failure messages

      • 1: Code line and failure message (default)

      • 2: Detailed stack traces

    • Requires: Integer value (default: 1)

  • Whether to notify about failures of transformers or models or other recipe failures

    • What it does: Controls whether to send notifications about component failures

    • Purpose: Enables alerting for failure events during experiments

    • Note: Shows high-level notifications in the GUI in addition to logging

    • Available options:

      • Enabled: Sends notifications for component failures (default)

      • Disabled: Logs failures without notifications

    • Requires: Boolean toggle (default: Enabled)

  • Factor to reduce estimated memory usage by

    • What it does: Sets the factor by which to reduce estimated memory usage

    • Purpose: Provides memory usage estimation adjustment for resource planning

    • Usage: Helps prevent memory over-allocation and system crashes

    • Note: Larger values use less memory (1 uses most memory)

    • Requires: Float value (default: 2)

  • Memory use per transformer per input data size

    • What it does: Sets the memory usage multiplier for transformers based on input data size

    • Purpose: Provides memory estimation for transformer operations

    • Planning: Helps with resource allocation and memory management

    • Note: Can be increased if final model munging uses too much memory due to parallel operations

    • Requires: Float value (default: 5)

Time Series Settings:

  • Timeout in seconds for time-series properties detection in UI

    • What it does: Sets the maximum time allowed for time-series property detection in the user interface

    • Purpose: Prevents UI freezing during complex time-series analysis operations

    • Timeout: Automatically stops detection if time limit is exceeded

    • Note: Prevents UI from becoming unresponsive during complex time-series analysis

    • Requires: Float value (default: 30.0)
