AI unit consumption

This section gives you meaningful stats and information about the AI units that are used in your H2O AI Managed Cloud (HAMC) environment.

Click AI unit consumption on the left-navigation bar to open the AI unit consumption page.

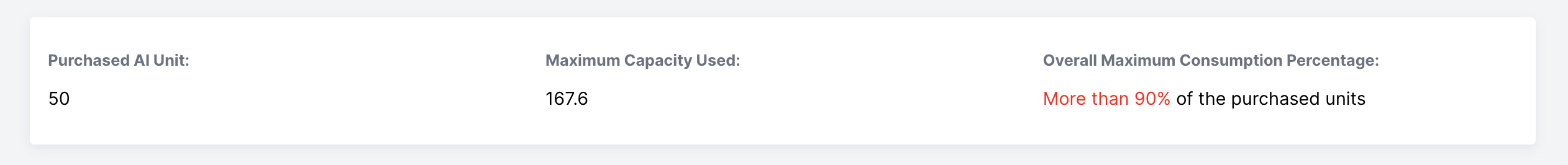

The top section of the page displays the number of AI units purchased and consumed.

AI unit consumption

  • Purchased AI units: The number of AI units that have been purchased for your HAMC environment.

  • Maximum capacity used: The total maximum number of AI units that have been used in your HAMC environment.

  • Overall maximum consumption percentage: This bar shows the percentage of maximum consumption over the number of purchased units.

In the example above, the Overall maximum consumption percentage bar is full because the maximum capacity used is higher than the number of purchased units. The warning indicates that the maximum consumption is more than the number of purchased units, thus providing helpful information to user that more AI units should be purchased for this environment.

Note
  • Users who don't have administrator privileges can only access the AI unit consumption page.
  • AI unit data is updated every 10 minutes.

Graphical representation of AI unit consumption​

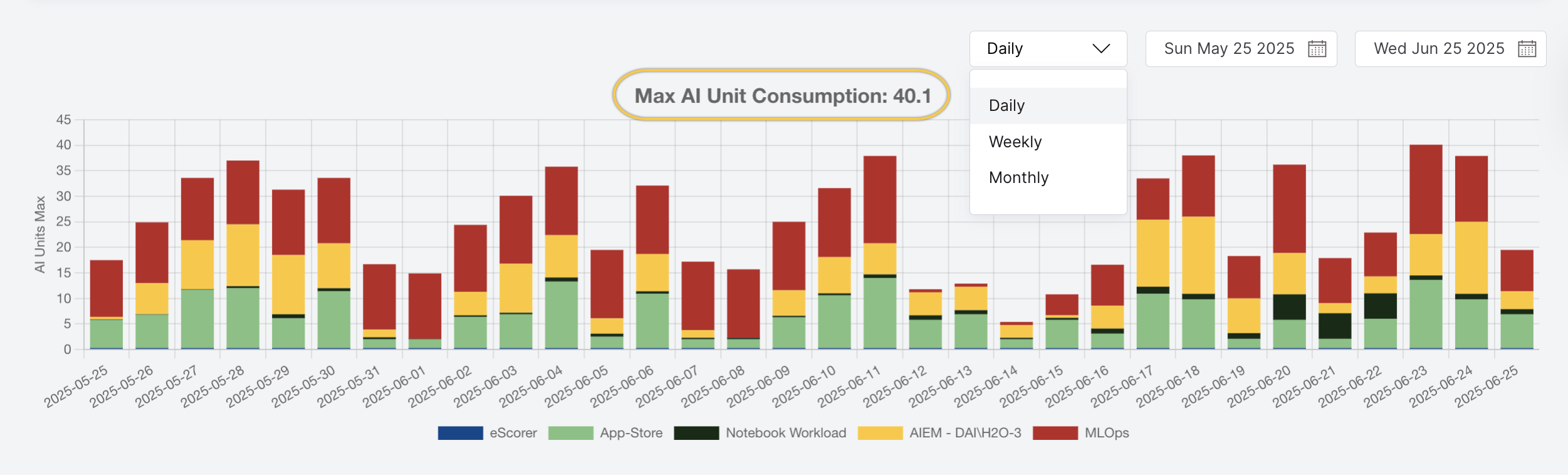

Under the AI unit consumption visualization, you can select 'daily', 'weekly', or 'monthly' as the Time frame and select a date range of up to 60 days. By default, the date range is set to one month.

For 'daily', 'weekly', and 'monthly' time frames, the maximum number of AI units consumed by the environment over the selected date range is displayed at the top.

AI unit consumption

Each column on the column chart displays the maximum value of each resource (as a stack) recorded within that date. It allows you to quickly identify which resources consume more AI units at a first glance. You can also hover over each column and view the tooltip to see specific numbers or examine the data more closely.

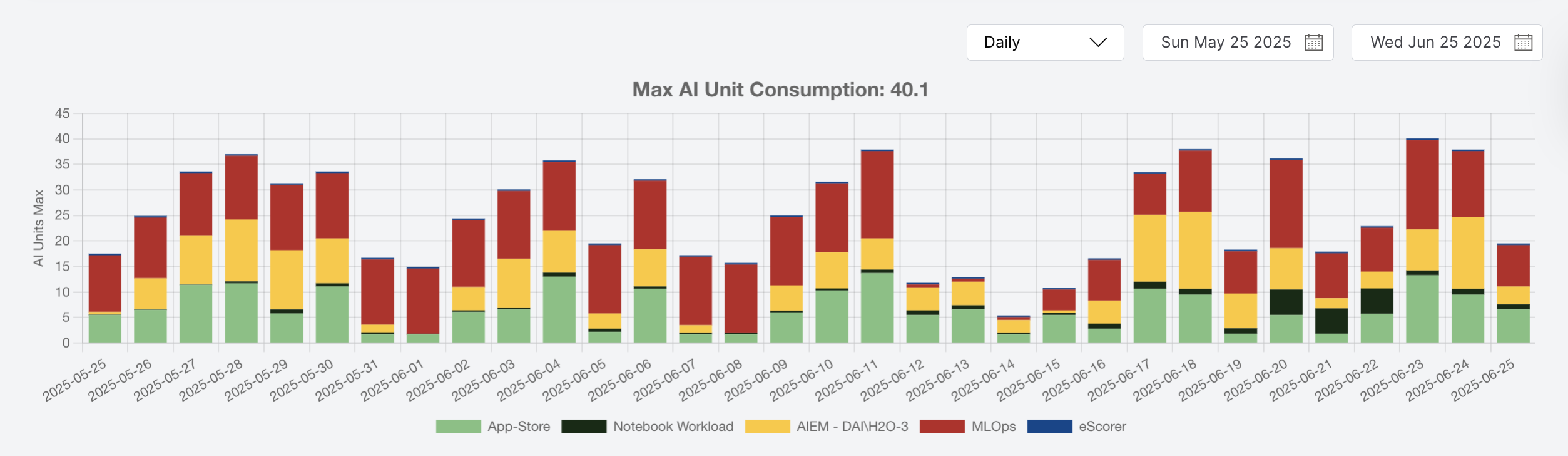

If you select daily as the Time frame, it shows the Max daily usage of each day of the selected date range for each application or product installed in the environment.

capacity of AI units used daily

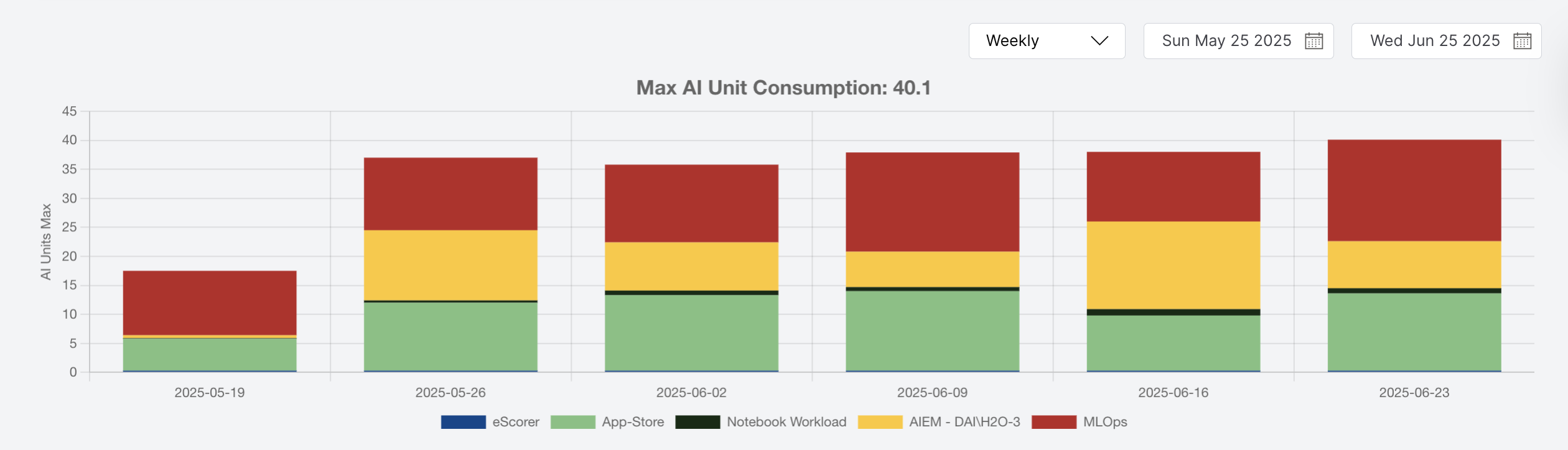

When you select the weekly Time frame, it shows Max weekly usage of each week starting from Monday for each application or product installed in the environment.

capacity of AI units used weekly

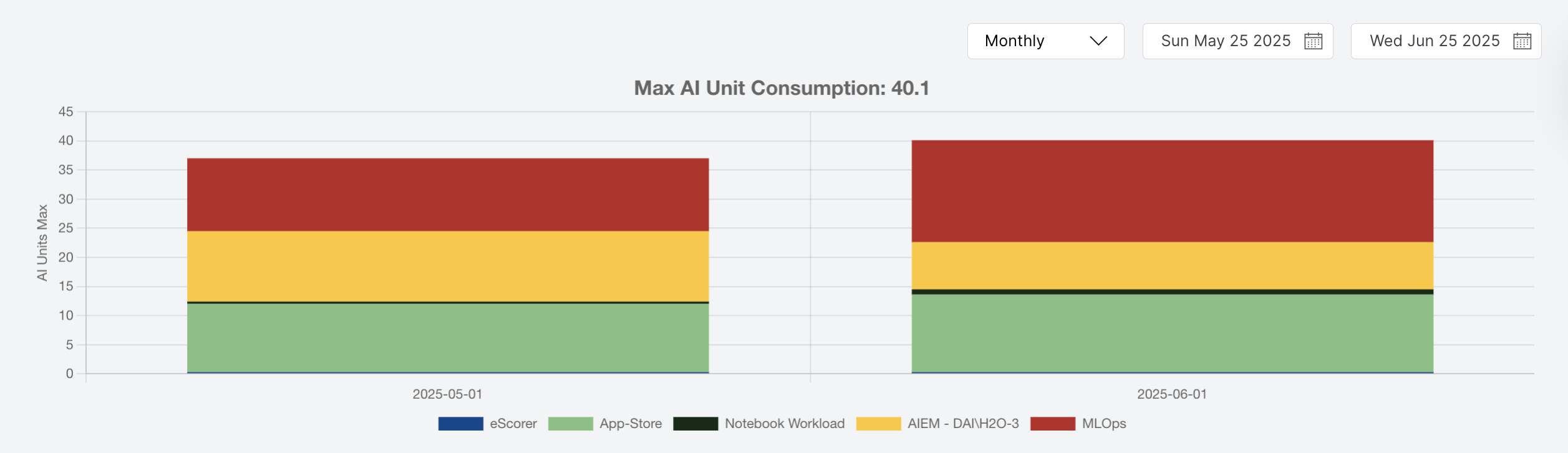

When you select the monthly Time frame, it shows the Max monthly usage of each month for each of the applications or products installed in the environment.

capacity of AI units used monthly

Consumption alerts​

You can send an email notification to the selected users if the percentage of the usage of AI units in your H2O AI Managed Cloud (HAMC) environment exceeds the threshold that you set.

To configure consumption alerts:

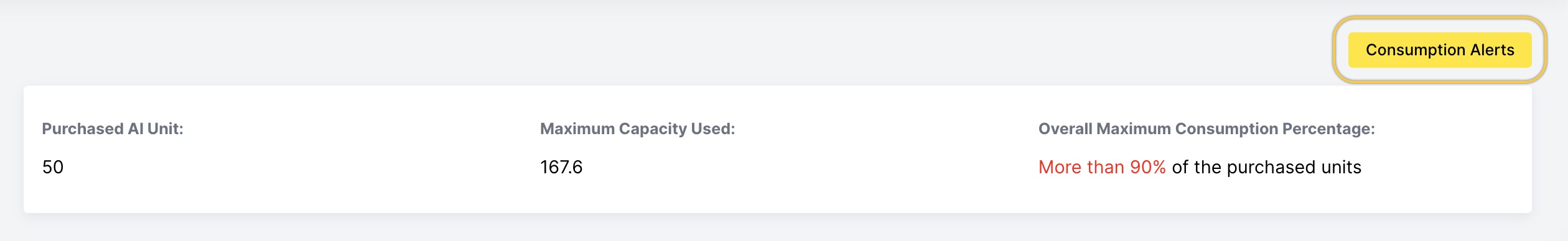

  1. Click Consumption alerts. click consumption alerts
  2. Configure the following settings:

    1. Alert time: Set a scheduled alert time within your time zone. If AI unit consumption for the previous day exceeds the threshold, selected users will receive an alert email at this time.

    2. AI unit consumption threshold: Set the threshold value through the slider.

    3. Alert receivers: Select alert receivers from the email list, which contains the email addresses of all users and admins of the application.

  3. Click Set alert.
